I. Structural Mechanics of 3D Cellular Confinement
- Material: High-density polyethylene (HDPE) hexagonal honeycomb structure with welded joints (100-400mm adjustable cell size)
- Key Mechanisms:
- Biaxial Constraint: Horizontally restricts particle displacement while vertically enhancing interlayer friction, forming a stable “soil-cell” composite59
- Stress Diffusion: Lateral tension from cell walls reduces soil particle displacement by 30-45% versus conventional methods69
- Shear Strength Boost: Achieves 30-45% higher shear resistance at equivalent compaction levels57
II. Material Performance Benchmarks
| Property | Performance Metric |
|---|---|
| Tensile Strength | >5kN/m peel resistance at ≤20% strain |
| Environmental Resistance | 90% strength retention after 180d pH3-11 exposure |
| UV Stability | <15% degradation after 5000h UV exposure |
| Molecular Crystallinity | 70-85% via copolymer modification |
III. Documented Engineering Outcomes
- Soft Soil Reinforcement
- Coastal highway project: Lifted bearing capacity from 80kPa to 150kPa+ with 40% less post-construction settlement46
- Load-Bearing Enhancement
- 34% capacity increase using 20cm-height/400mm-spacing cells, limiting differential settlement to ≤3.8cm28
- Settlement Control
- 0.3m HDPE geocells matched 1.2m gravel layer’s lateral restraint at 1/5 material volume13
IV. Construction & Cost Efficiency

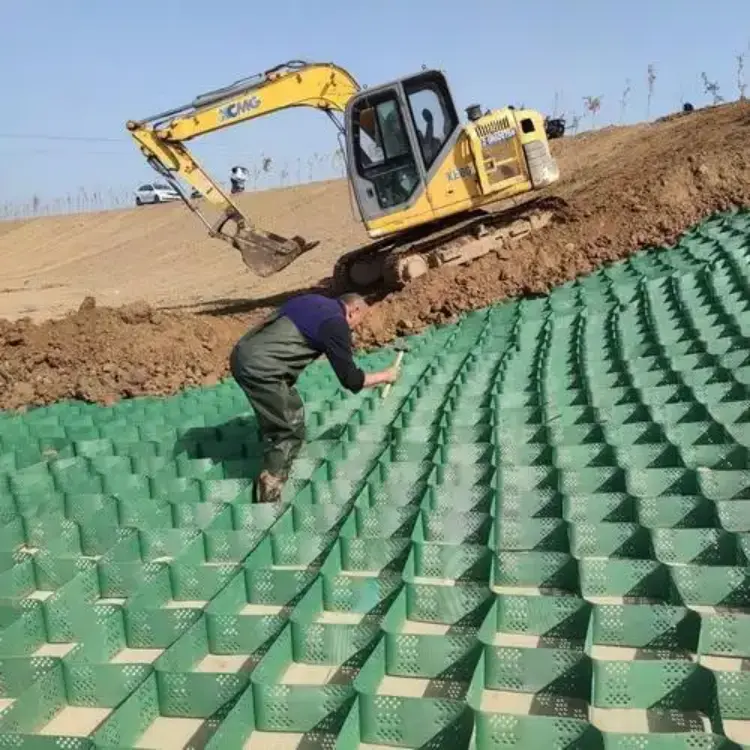

- Installation: Modular design enables 30% faster deployment vs traditional methods47
- Lifecycle Savings: 27-41% cost reduction over 20-year service period through:
- 40% lower maintenance needs
- 20% reduced earthwork volume49
V. Technical Summary
Honeycomb geocells deliver transformative advantages in foundation reinforcement through their unique 3D structure and superior material properties. The biaxial confinement mechanism, stress diffusion effects, and enhanced shear strength collectively elevate soil bearing capacity. Documented engineering results confirm that geocells:
- +30-45% shear strength enhancement
- 40-60% stress dispersion efficiency
- 50-year design life in corrosive/UV environments57
