Product Highlights
- Material Composition: Formulated from polyvinyl chloride resin with plasticizers (typically 25-35% phthalate-free content) and UV stabilizers
- Standard Thickness: 0.5mm to 2.0mm (20-80 mil) with customizable widths up to 8m
- Temperature Range: -30°C to +60°C operational stability (ASTM D2136 verified)
Key Advantages
- Superior Flexibility
Elongation exceeding 300% (ASTM D638) accommodates subgrade movement without cracking - Chemical Resistance
Excellent performance against acids, alkalis, and hydrocarbons (compatible with pH 2-12 environments) - Installation Efficiency
Lightweight (1.3-1.4 g/cm³) with prefabricated seams allows 30% faster deployment than HDPE - Cost Effectiveness
20-40% lower material cost compared to polymeric membranes with similar performance grades - Adaptive Performance
Available in smooth/textured surfaces with optional antimicrobial treatments for specialized applications
Standard PVC Geomembrane Size Chart
| Thickness (mm) | Roll Width (m) | Roll Length (m) | Surface Type | Weight (kg/m²) | Common Applications |
|---|---|---|---|---|---|
| 0.50 | 2.0 – 8.0 | 50 – 100 | Smooth / Textured | 0.65 – 0.70 | Pond liners, temporary covers |
| 0.75 | 2.0 – 8.0 | 50 – 100 | Smooth / Textured | 0.98 – 1.04 | Landfill caps, secondary containment |
| 1.00 | 2.0 – 8.0 | 50 – 100 | Smooth / Textured | 1.30 – 1.38 | Mining leach pads, wastewater lagoons |
| 1.50 | 2.0 – 6.0 | 30 – 50 | Textured (dominant) | 1.95 – 2.07 | Oil & gas pits, hazardous waste |
| 2.00 | 2.0 – 5.0 | 20 – 30 | Textured (exclusive) | 2.60 – 2.76 | Heavy industrial, chemical storage |
Primary Applications
- Water Management: Potable water reservoirs, irrigation canals

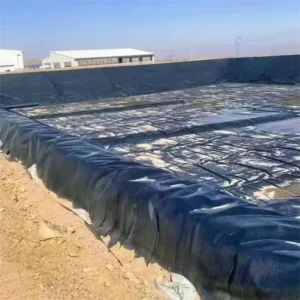

- Environmental: Landfill secondary liners, evaporation ponds
- Industrial: Secondary containment for chemical storage
- Aquaculture: Shrimp farming ponds, hatchery tanks
Quality Assurance
Manufactured under GRI-GM17 standards with third-party certification (ISO 9001, NSF/ANSI 61 for potable water contact)
